The Setup Wizard

When using the CS141 for the first time, the device will automatically launch the setup wizard via the welcome screen. This guided process is designed to assist you in completing the initial configuration step by step.

 It’s important to note that the wizard operates in a linear sequence — you cannot skip ahead or freely navigate between sections. Instead, you must proceed by clicking the "Next" button to move through each configuration stage in the intended order.

This ensures that all necessary settings are correctly and systematically applied before the device becomes operational.

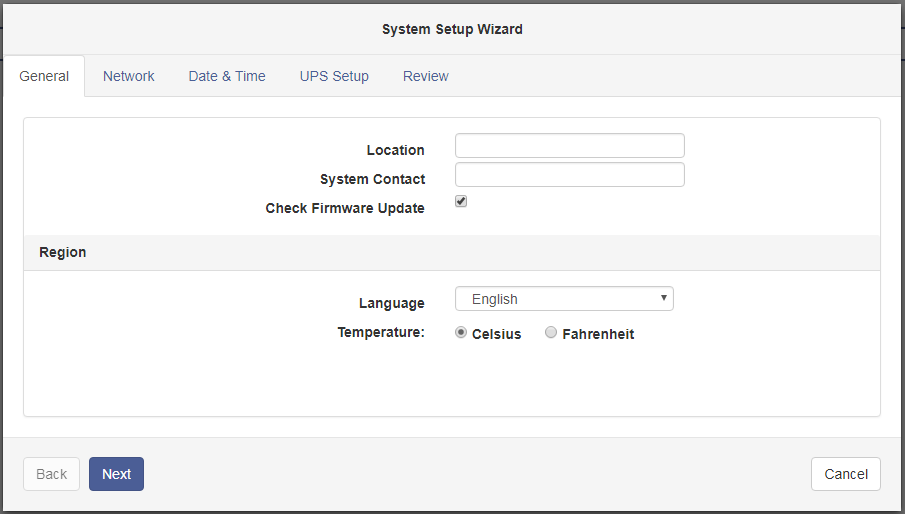

The Setup Wizard helps to set up a basic configuration:

General
Provides basic information about the location to be installed, system language, responsibilities and temperature scale.

Network
Enter the network configuration - The necessary data can be obtained from the local administrator.

Date & Time
Provide basic information about the date, time, and time server

UPS Setup
Enter information about the UPS the CS141 shall be connected to

Review
Check data before you finish the configuration process before finishing.

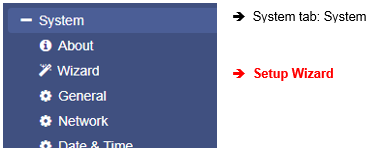

If you want to revisit the Setup Wizard navigate to the following menu:

Note:

The Setup Wizard simply summarizes basic settings and provides a quick and convenient solution that can be used to make or change basic settings. If you want to perform the configuration completely manually, click  Cancel - You can always restart the Setup Wizard in the configuration menu.

But be careful: Some entries such as UPS configuration have dependencies to advanced configuration entries the Wizard does not include.
