NTP Time Service

Application Note #011

The CS141 products require a time server to sycronizes the data and alarms/events In some installations the end user will not allow the CS141 equipment onto their corporate network.  This application note will guide the user to enable a ntp server on a standard Windows PC.

Windows Time Service

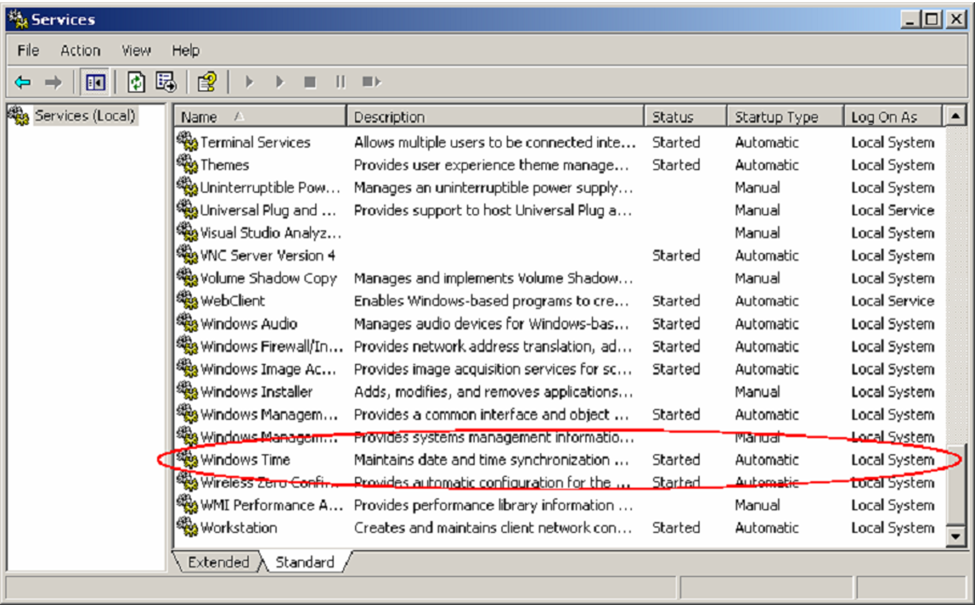

1.  Open Settings->Control Panel->Windows Tools->Services and ensure that the Windows Time-Service's Startup Type is set to Automatic and that the services are running.



Note:

For Windows 11, Microsoft renamed Administrative Tools to Windows Tools meaning you might find the Windows Time Service on systems older than Windows 11 under:

Settings->Control Panel->Administrative Tools->Services

Edit the Registry to enable NTP

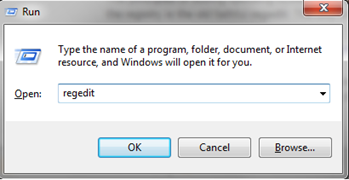

2. Open the Windows Registry

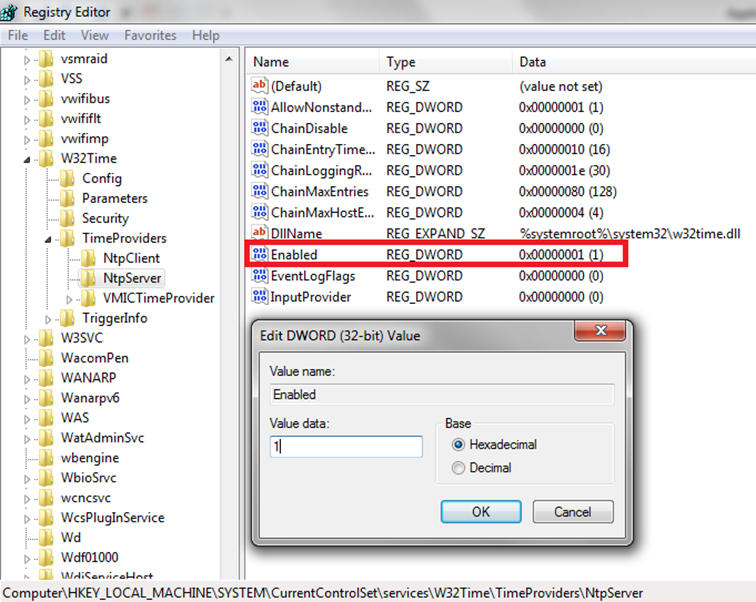

3. Under the windows registry got to:

 HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\W32Time\TimeProviders\NtpServer

4. Right click on “Enabled” and change the “Value Data” from 0 to 1 and click OK

5. Under Settings->Control Panel->Windows Tools->Services

• Stop and Restart “Windows Time”

Note:

Please check if your computer is reachable through the network. You may have to change the Windows Firewall settings to allow inbound/Outbound UDP port 123.

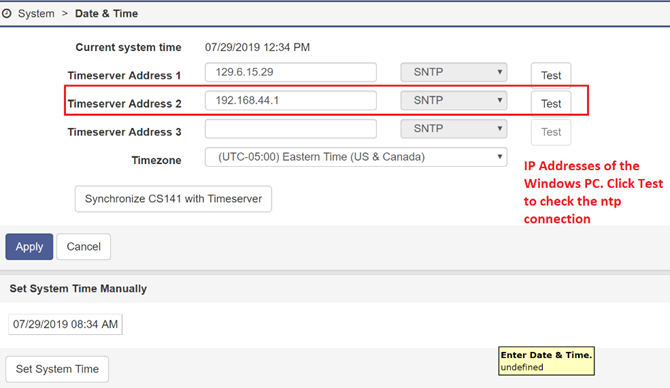

6. Once the steps above have been completed verify on the CS141 that the time services are working properly under System- Date & Time

If you're still experiencing issues, here's a more detailed description

How to set up a custom time server

Or the description by Windows:

Windows Time service tools and settings
