Restart the CS141 Device

In general, there are three different options to restart the device:

Option 1 – the cold boot

Option 2 - Reboot by software

Option 3 (CS141HW161 only)

Option 1 – the cold boot

Briefly disconnect power by pulling the power plug or removing the card from the slot. The device will then boot to the appropriate operating state with the new hardware setting.

Option 2 - Reboot by software

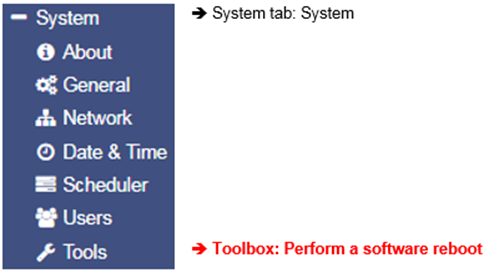

For this step, please switch to the following menu:

The toolbox is restricted for administration usage only.

After login as hard-coded user admin using default password cs141-snmp, you will be allowed to use the toolbox with extended support features.

Please note: The default password is only active in case of no other password was set.

Afterwards it is possible to us the CS141 reboot option.

In both cases the UPS will not be restarted, but it only affects the CS141 - your power supply is ensured.

Option 3 (CS141HW161 only)

With 2022 onwards, the Slot Cards of the CS141HW161 introduced a Reset button:

• CS141HW161 SC
• CS141HW161 SCM
• CS141HW161 BSC
• CS141HW161 MINI / R2

To restart these Webmanager modules just push the reset button – this will not delete your current saved configuration, it will reboot the WEBMANAGER directly:

• Put the sliding switch into the position of the intended operation mode
• Press the Reset Button

The CS141HW161 will reboot and take over your desired hardware setting.
