Restarting SNMP

This function is available up to firmware 1.78. With firmware 1.80, this feature is an automated background process. No configuration is required.

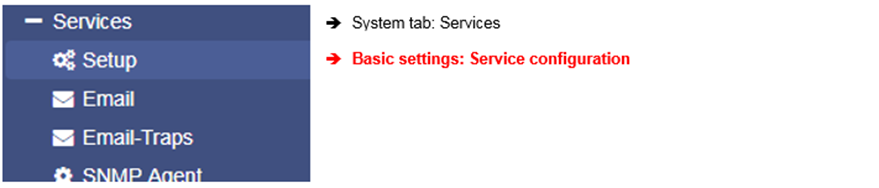

For this configuration step, navigate to the following menu:

Within a specific and non-standard operating environment, the SNMP agent may stop responding as expected. The CS141 therefore provides a sub system to ensure the SNMP agent is running and alive.

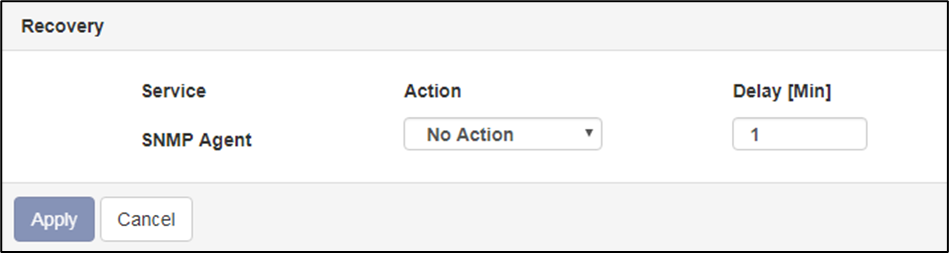

In case of the SNMP agent suddenly dies, these options are available:

No action                                the recovery service will not bother the SNMP agent with something like restarting.

Restart                                    the recovery service will restart the SNMP agent if it does not answer.

Delay [Min]                             time delay until the Recovery service will restart the agent.

Note:

In some cases, SNMP v1 queries may cause a hang up of the SNMP agent. Although not officially supported, the CS141 can work with the appropriate SNMP v.1 queries. The agent recovery service ensures that the agent is automatically restarted in case of doubt.
