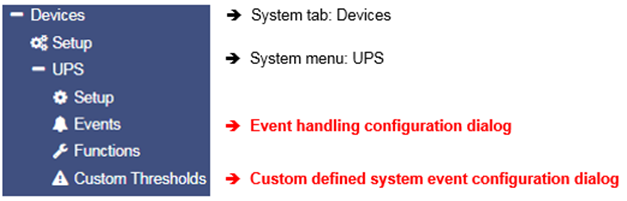

For this configuration step, proceed to the following menus:
In some cases, UPS models allow you to customize the limits for some UPS-specific events.
The CS141 supports these features if the UPS provides such an option. Otherwise, you will be informed by a corresponding system message.
The configuration is done via two menus:
- Custom Thresholds to define and customize settings
- vent menu to assign jobs
Differences between Warning and Alarm Levels
The Custom Thresholds are identical for Warning and Alarm Levels, but they are listed separately in the UPS event menu. They will also appear in log files as either a Warning or an Alarm.
This separation allows you to configure warning and alarm behavior with different values.
The following conditions can be set:
Out of range: The event — regardless of alarm or warning—is triggered if the measured value falls below or exceeds the entered values.
Less than: The event — regardless of alarm or warning—is triggered if the measured value falls below the configured values.
Greater than: The event — regardless of alarm or warning—is triggered if the measured value exceeds the configured values.
Example: How to configure UPS temperature Custom Thresholds
Electrical devices operate safely within a specific temperature range. Running a device that exceeds this range can cause problems, from minor defects to acute fire hazards.
To intervene in time, a predetermined temperature value should be compared with the measured temperatures. For example, a manufacturer might specify a safe operating temperature between +5 °C and +39 °C. The CS141 can be configured to issue a warning if these values are exceeded. The “out of range” condition first defines the safe temperature range.
As mentioned, two menus are required to configure Custom Thresholds:
Custom Thresholds
UPS events
The first setting is made under Custom Thresholds where the appropriate values are set.

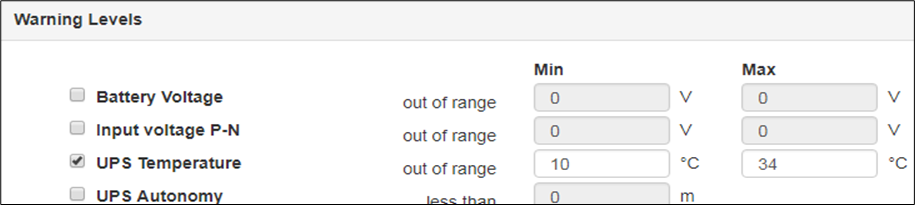

Enabling the checkbox UPS Temperature will include measuring values according to the UPS. For the argument out of range you need to specify both - the lowest temperature value and the highest temperature value.
Note:

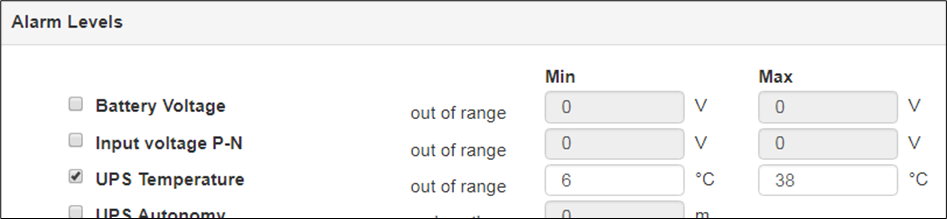

Since this is a warning, it should be issued before the critical values are reached. Because the minimum of +5 °C and the maximum of +39 °C are predefined by the manufacturer, the warning level values must be adjusted accordingly. In this example, the decision is made to use +5 °C:
Save your entries and move to the next menu:
- UPS event

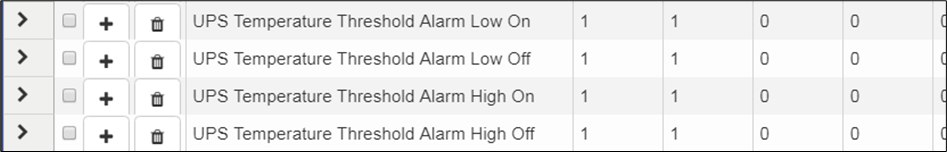

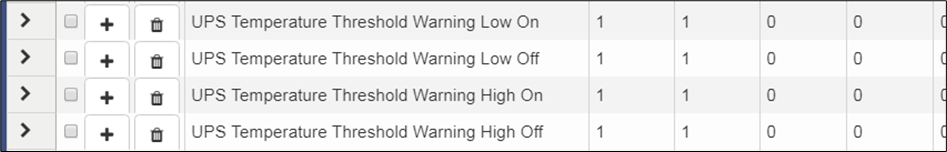

Search for temperature threshold entries in the UPS events. Unlike in the Custom Thresholds menu, each threshold is displayed as a regular system event and it shows all possible states.
Since Custom Thresholds can be configured like regular UPS events, all jobs are available. If necessary, counter jobs can be defined according to temperature.
Setting up Alarm Levels
The alarm levels represent an escalation level and, if necessary, should trigger emergency measures, the values must be adjusted accordingly to warning levels.
🔵Note:
Since the condition for an alarm is fulfilled in addition to existing warning levels, configured jobs can be executed in parallel, overlap or even contradict or cancel each other out.
Exemplary excerpt: Custom Thresholds

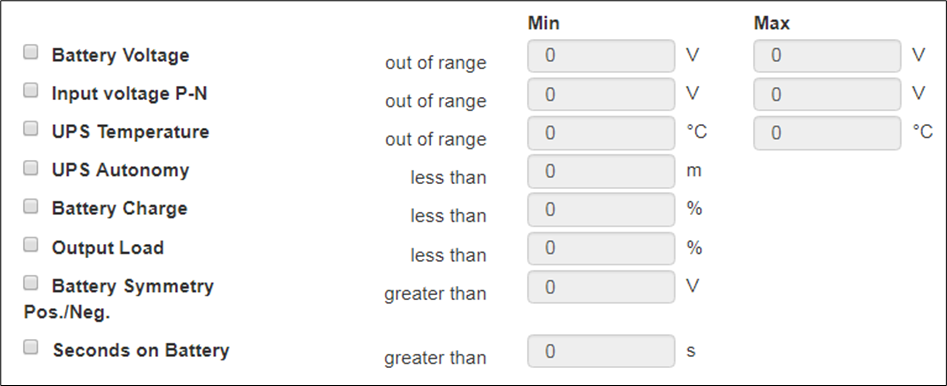

This excerpt is an example. Depending on the UPS model and manufacturer, the list may vary in both naming and functionality. The sample list below displays the custom threshold list of the XANTO 2000R from the manufacturer Online.
| Battery Voltage out of Range XX V – XX V | Batteries are sensitive to voltage; high voltages and deep discharges can permanently damage them. This value can be used to provide an early warning when the entered range is exceeded. |
| Input Voltage P-N out of Range XX V – XX V | On request, some UPS systems offer measurement data of the input voltage. This value can be used to trigger an alarm in response to voltage dips or overvoltage on the main power input. |
| UPS Temperature out of Range XX°C – XX°C | Some UPS systems provide internal temperature sensors to measure device temperature. This value can be used to define an additional alarm based on the temperature readings supplied by the UPS. |
| UPS Autonomy Less than XX m | In some cases, it is useful to define an alarm related to the remaining time a UPS can ensure emergency power in autonomous mode. For example, if defined jobs depend on a specific time delay and, due to several short power outages in a row, less time is available, an emergency scenario could include an alarm-triggered system shutdown. |
| Battery Charge Less than XX % | When a UPS returns from autonomous operation to normal mode, it automatically starts to recharge the batteries, which can take some time. In the case of several short power failures in sequence, this value can be used to define an early warning for low battery charge. |
| Output Load Less than XX % | Some UPS systems provide real-time measurements of the current load. If the UPS switches to autonomous mode, non-vital systems are usually shut down quickly. Since the output load changes when systems are shut down, this value can be used for confirmation or advisory purposes. |
| Battery Symmetry (Pos./Neg.) Greater than | Some UPS systems use the positive and negative half-wave of AC to charge batteries. This setting defines an alarm if the positive and negative battery strings are not loaded evenly. |
| Seconds on Battery Greater than XX s | In some situations, such as when large industrial plants start up, a voltage drop may cause the UPS to switch to autonomous mode for only a few seconds. This value can be used to trigger an additional warning to verify a genuine autonomy case. |
Note:
Pay close attention to the arguments associated with each threshold: Greater than, less than, in range, out of range. Since these arguments are interpreted literally, the warning and alarm behavior will operate exactly as configured.For example, if the output load warning is set to less than 67%, a warning will also be issued if the load drops to 43%. However, exactly 67% will not trigger a warning because the value must be below 67% to meet the condition.
Tutorial: Custom Thresholds
Although the CS141 recognizes the UPS correctly, contactors are to be activated via potential-free contacts. This shall switch off external devices as soon as the charge of the batteries drops below a configured value.
This configuration can be realized indirectly:
If a CON_R_AUX4 is connected to a CS141, its potential-free outputs can be used to control contactors, allowing them to be switched on (ON) or blocked (OFF). This enables contactor control without additional complexity.
However, this becomes challenging if the UPS does not provide suitable events, as these will not appear in the UPS event menu. In such cases, the configuration can be achieved by using Custom Thresholds.
The key to this configuration is the fact this function depicts a user definable job as a UPS event:

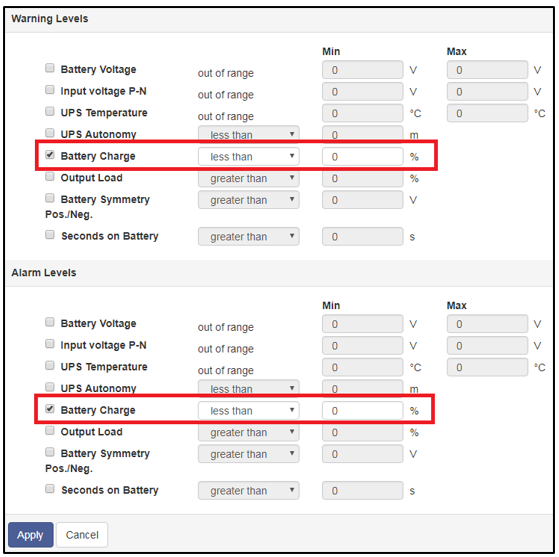

Setting 71% for Warning Levels and 61% for Alarm Levels, you can subsequently assign appropriate behavior in the UPS events:
If the battery charge drops to 70%, the first devices are switched off.
If the battery charge drops to 60%, the next devices are turned off. The counter events are set to Warning OFF or Alarm OFF.
As the batteries are charging, the devices should start after battery charge reaches similar values for shutdown.
From 61% the first device list will be switched on.
From 71% the second device list will be switched on.
Since there is no AND connection to the Power Fail, there are basically two possibilities to run these jobs:
Once
Repeat as long as the event is active
Note you have a difference of 1% between ON and OFF. Due to the fact the value needs to drop below the values, it is technically not possible to switch exactly ON and OFF at 70% or 60%. A decision is needed whether you wish to switch ON the devices at 60/70% or OFF.
You need to define your jobs exactly:
Turning off the same devices at 70% and to ON position at 61% could cause conflicts between events and jobs, devices should therefore be consistently configured separately.
What will happen between 0% – 71%
Depending on the configuration, independent to any power fail the devices will stay off, shutdown or restart between 0% and 71% battery charge. Above 71% the devices will run as long as no power fail will cause the battery charge to drop to 70%. Since the current load has no influence on the percentage of battery load, the flexible remaining time does not affect this setting. The percentages of the current battery charge are basically used.
Note:
A detailed description of the CON_R_AUX4 can be found at chapter Sensors.
