Scheduler

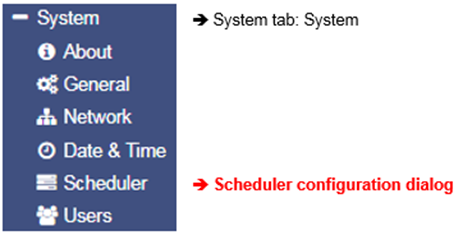

For this configuration step, navigate to the following menu:

Regardless of all system events, the models of the CS141 series offer the possibility to run jobs at freely definable times.

These so-called scheduled jobs can be used, for example, to control subordinate systems, to restart computers, to perform battery tests, etc.

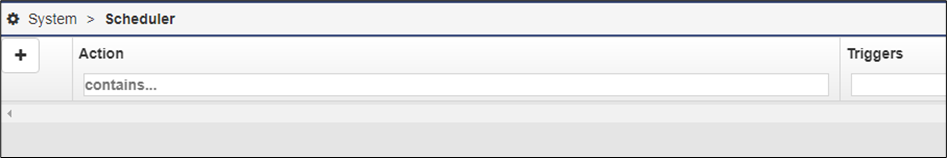

Configuration menu for scheduled jobs

As a factory default configuration, no job is defined. They need to be defined by administrators or engineers

Press + to start scheduled task configuration dialog

The job configuration dialog is similar to UPS event job configuration dialog. Timing configuration differs due to the fact these jobs have to be triggered independently of UPS alarm states:

Start: enter the date and time the job will be executed the first time.

Repeat toggles the job's repeating behavior

These values are valid:

One time: only one execution

Daily:
Every day depending on system time

Weekly:
Once a week depending on system time

Monthly:
Once a month depending on system time

Note:
In some cases, jobs can be setups can vary according to the configuration of connected devices.
