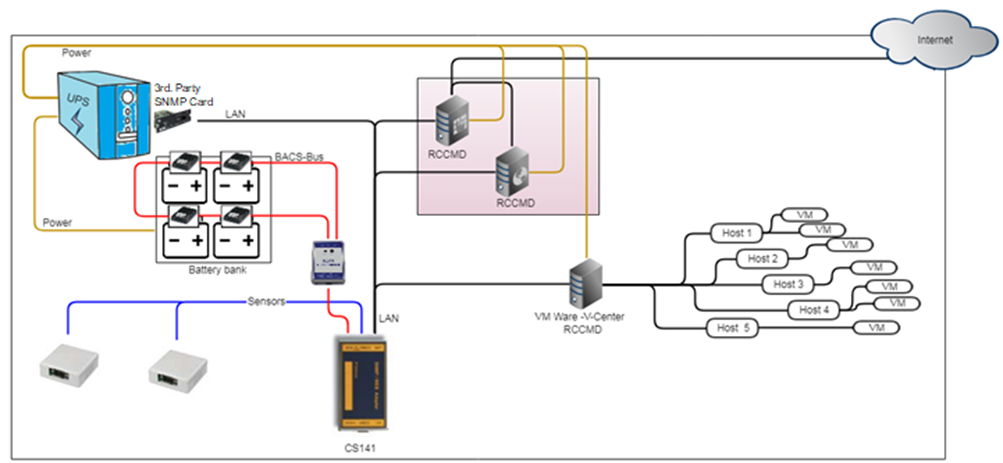

RCCMD is designed to individually shut down your systems in an emergency. In this case, a shutdown command is sent to the clients by an RCCMD server - usually a UPSMan or CS141 - and implemented accordingly by the client.
The following ports must be open on your network:
| Port 8080 | The local RCCMD web interface is accessed via this port |
| Port 8443 | The RCCMD web interface is called up via https |
| Port 6003 | The RCCMD communication port for managing control signals |
The RCCMD client requires a fixed IP address
This IP address must be communicated to the RCCMD server so that a clear command can be sent. If the IP address changes dynamically or if there is no DHCP server in emergency situations, RCCMD can also be addressed directly in this way.
Generally supported operating systems
With few exceptions, RCCMD supports almost every operating system available on the market based on Unix / Linux, Windows and numerous versions of MAC/OS and is available as a special version for AS400. A precise list of all supported operating systems can be found in the download area when selecting the respective installer. If your operating system or derivative is not listed, please contact our technical support at support@generex.de - Our technical support will be happy to answer all your questions.
Minimum system requirements for the VMware RCCMD Appliance
VMware 6.5 - 8.X – based systems
The appliance, which is officially available for download, requires VMware version 6.7 or higher. Older versions are not supported by the official download. A download link is free of charge available at www.generex.de.
On request available: Legacy versions of the appliance for older VMware systems available
For VMware 6.x users…
There is a special legacy version of the appliance for these systems, which is specially tailored to the needs of operation from VMware 6.5. The appliance also supports the VMware vSAN function introduced with 6.7. Installation and configuration can be carried out as described below (there may be slight deviations in the menu control compared with the latest RCCMD).
VMware 5.x / 6.0 and older…
These older systems use VMware's Virtual Media Assistant, which is exclusively available in the VMware download area. After rolling out the VMA, a special RCCMD version for VMware can be uploaded and installed via ftp.
If there is need to use an older version of RCCMD, just refer to our technical support at support@generex.de.
v.: 2025-07-23 FW 2.16-2.26
