How to configure network settings

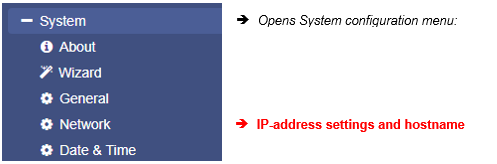

For this configuration step, navigate to the following menu:

Most settings can be done as long as the CS141 is in configuration mode.

Depending on your network settings there could be a problem when performing tests and forwarding functions - they are often not possible on hardware preset 10.10.10.10. Due to this fact it is a good choice to configure all basic settings inside configuration mode and switch to normal mode before starting advanced UPS configuration.

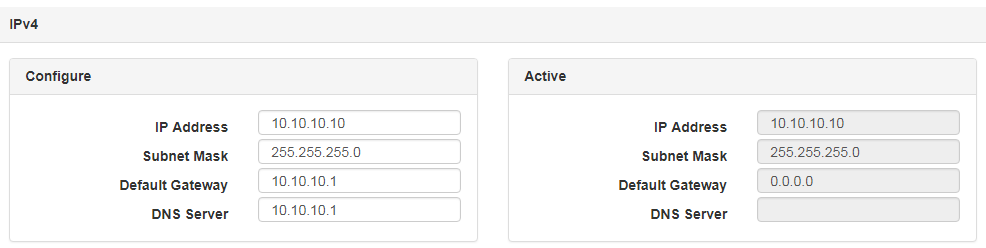

At Configure, enter the IP address data the system shall use. Active shows the current IP address settings used by the system.

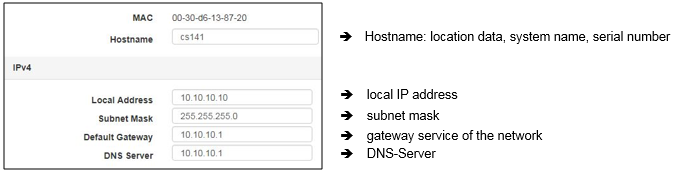

It is possible to change the following settings

On first startup, the CS141 will get hard-coded information. The required IP address information to enter the operational mode correctly can be obtained by contacting the responsible network administrator.
Press Apply to save your settings.

Note:

At this point, the web browser redirects you to the new IP address. Since the CS141 is still in configuration mode, you will receive an error message from your web browser. In this case, ensure to work with the IP 10.10.10.10 and press CTRL F5 to refresh the web browser.

For a first configuration, the Network menu is the only setting you currently need to make in Configuration mode.
It is possible to carry out all other settings in regular operating mode.
